Re:Earth Terrain — Open Terrain Tiles for 3D Globes

If you’ve ever loaded a Digital Elevation Model (DEM) into CesiumJS or MapLibre and noticed the terrain looks slightly floating or sunken relative to the basemap, you’ve encountered a fundamental geodetic mismatch: most DEMs store heights above mean sea level (orthometric heights), but 3D Earth renderers draw the planet as a smooth WGS84 ellipsoid, and those two reference surfaces differ by tens of meters in many parts of the world.

Re:Earth Terrain solves this at the tile level. It blends a global DEM with the EGM2008 geoid model per-request and serves the result in the formats that CesiumJS and MapLibre already speak — free, open, and production-ready.

---

The Core Problem

A 3D globe engine (Cesium, three.js, deck.gl, etc.) approximates the Earth as a WGS84 ellipsoid — a smooth mathematical surface. When it drapes a terrain mesh over that ellipsoid, it expects vertex heights referenced to the ellipsoid itself.

But virtually every DEM source — Copernicus, SRTM, ALOS, TanDEM-X — publishes orthometric heights, measured relative to the geoid (mean sea level). The difference between the two, called the geoid undulation, can reach ±100 m:

Location	Geoid Undulation
Mt. Fuji, Japan	~+39 m
San Francisco, USA	~−32 m
Death Valley, USA	~−25 m
Amsterdam, Netherlands	~+43 m
Lake Titicaca, Peru/Bolivia	~+15 m

Blindly feeding orthometric heights into an ellipsoidal renderer introduces a systematic vertical offset large enough to break 3D building alignment, flood analysis, and line-of-sight calculations.

---

How Re:Earth Terrain Works

Under the hood, the service combines three data sources on a single Cloudflare Worker, handling tile generation on the fly:

Source	Role	License
Mapterhorn	Global DEM (orthometric heights)	CC BY 4.0
EGM2008 (NGA)	Geoid undulation grid, converted to a COG	Public domain
Protomaps (OSM)	Water polygons for watermask	ODbL

When a tile request arrives, the worker:

1. Fetches the orthometric DEM tile from Mapterhorn (Range GET — no re-hosting)
2. Reads the EGM2008 geoid undulation for each vertex
3. Adds them together: ellipsoid height = orthometric height + geoid undulation
4. Encodes the result into the requested format and returns it

The entire service runs on Cloudflare Workers + R2, keeping latency low and operational cost near zero — no EC2 instances, no GPU, no tile storage for the processed output.

---

Integration Guide

CesiumJS (quantized-mesh-1.0)

CesiumJS is the primary target. The cesium-mesh endpoint produces TMS-Geographic quantized-mesh tiles consumed directly by CesiumTerrainProvider:

import * as Cesium from "cesium";

const terrain = await Cesium.CesiumTerrainProvider.fromUrl(
  "https://terrain.reearth.land/cesium-mesh/ellipsoid",
  {
    requestVertexNormals: true, // enables shaded relief
    requestWaterMask: true,     // flat ocean / lake surfaces
  },
);

const viewer = new Cesium.Viewer("cesium", { terrainProvider: terrain });
viewer.scene.globe.enableLighting = true;

The fromUrl method fetches layer.json automatically, discovering the tile template, zoom range, and supported extensions (vertex normals, watermask).

MapLibre GL JS (raster-dem)

For MapLibre, the mapbox / terrarium endpoints serve raster-encoded elevation tiles in standard Web Mercator XYZ:

map.addSource("terrain", {
  type: "raster-dem",
  url: "https://terrain.reearth.land/mapbox/ellipsoid/tilejson.json",
});
map.setTerrain({ source: "terrain" });

The TileJSON advertises the full tile URL template and zoom range, so one URL is all you need. Swap mapbox for terrarium if your pipeline expects Mapzen Terrarium encoding.

Note for MapLibre users: For ordinary 2.5D hillshade, Mapterhorn (which ships orthometric heights) is the recommended default. Reach for Re:Earth Terrain’s raster-dem endpoint specifically when you need ellipsoidal heights — e.g., comparing DEM values against GNSS readings, or fusing the basemap with a Cesium scene that already uses ellipsoidal terrain.

---

Endpoint Reference

All paths follow the structure /{tileset}/{encoding}/{data_type}/...:

Encoding Formats

Encoding	Output	Extension	Consumer
cesium-mesh	quantized-mesh-1.0 (TMS Geographic)	.terrain	CesiumJS
mapbox	Mapbox Terrain-RGB (Web Mercator XYZ)	.webp / .png	MapLibre, Mapbox GL
terrarium	Mapzen Terrarium (Web Mercator XYZ)	.webp / .png	MapLibre, deck.gl

Data Types

Type	Meaning	Best For
ellipsoid	DEM + geoid undulation → WGS84 ellipsoid height	CesiumJS terrain, GNSS comparison
elevation	Orthometric height (above MSL) — raw DEM value	Contour generation, MSL-referenced analysis
geoid	EGM2008 geoid undulation only	Coordinate conversion, geoid visualization

Key API Routes

Route	Purpose
GET /{tileset}/cesium-mesh/{type}/{z}/{x}/{y}.terrain	quantized-mesh tile
GET /{tileset}/cesium-mesh/{type}/layer.json	Cesium layer.json
GET /{tileset}/{mapbox|terrarium}/{type}/{z}/{x}/{y}.{webp|png}	Raster terrain tile
GET /{tileset}/{mapbox|terrarium}/{type}/tilejson.json	TileJSON 3.0.0
GET /{tileset}/{watermask|watermask-tms}/{z}/{x}/{y}.{webp|png}	Water mask raster
GET /{tileset}/heights.json?points=lon,lat;...	Point heights (≤ 256 points)

The point heights API is particularly useful: pass a semicolon-separated list of coordinates and get back elevation, geoid, and ellipsoid heights in a single JSON response — handy for quick cross-referencing during development.

---

Watermask

Alongside terrain, the service exposes a Protomaps-derived water mask raster. Water pixels are opaque black (#000000), land is fully transparent. Drop it as an overlay in any map renderer:

map.addSource("water", {
  type: "raster",
  url: "https://terrain.reearth.land/watermask/tilejson.json",
  tileSize: 256,
});
map.addLayer({
  id: "water",
  type: "raster",
  source: "water",
  paint: { "raster-opacity": 0.3 },
});

Use watermask-tms when you need TMS Geographic coordinates to align with the cesium-mesh tiles. Use watermask (Web Mercator XYZ) for MapLibre / Leaflet / Mapbox GL.

---

Why This Matters for GIS Developers

Re:Earth Terrain fills a gap that has historically been handled by either:

• Cesium Ion — convenient but proprietary, requires an API key, and doesn’t expose the underlying geoid adjustment
• AWS Terrain Tiles — free but orthometric-only; you’d have to build your own geoid correction pipeline
• Self-hosted solutions (e.g., CTB / terrarium converters) — full control but significant infrastructure work

By wrapping DEM + geoid into a single, zero-config tile endpoint, Re:Earth Terrain makes correctly-referenced 3D terrain as simple as pointing a URL. The service is fully open-source (MIT), the source is on GitHub, and you can inspect exactly what the Worker does at each zoom level.

---

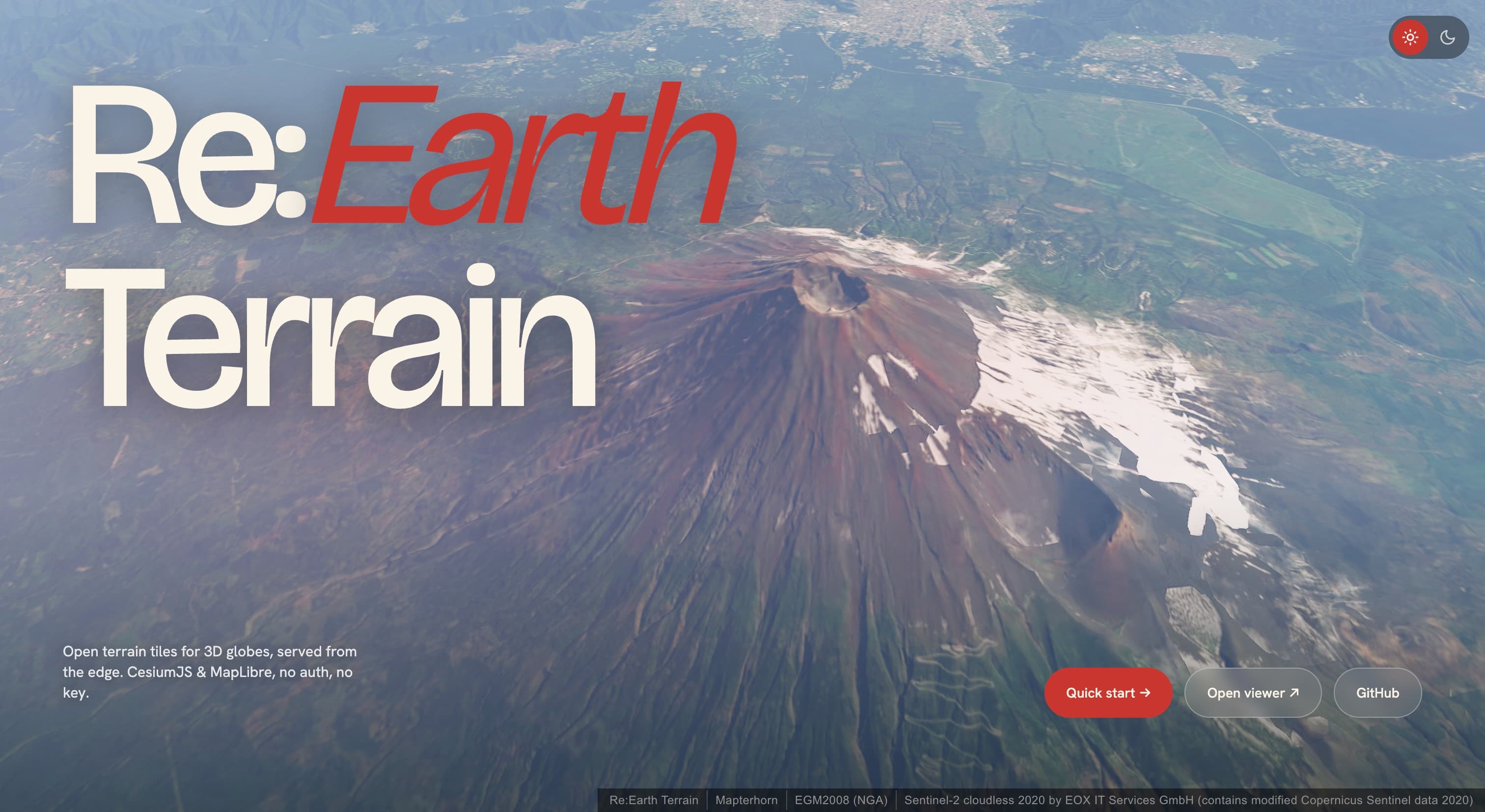

Viewer and Try It Yourself

Visit terrain.reearth.land/viewer for a live CesiumJS demo. Select from preset locations — Mt. Fuji, Lake Geneva, Amsterdam, Death Valley, Everest — and orbit the terrain to see the ellipsoid-referenced mesh in action.

The viewer also lets you toggle between different basemaps and terrain encodings, making it easy to compare the visual difference between orthometric and ellipsoid terrain side by side.

---

Summary

Feature	Detail
Service	Free, open terrain tiles for 3D globes
URL	terrain.reearth.land
Core innovation	Per-request DEM + EGM2008 geoid fusion
Formats	quantized-mesh-1.0, Mapbox Terrain-RGB, Mapzen Terrarium
Runtime	Cloudflare Worker + R2 — no servers to manage
Licensing	Code: MIT. Data: CC BY 4.0 (Mapterhorn), Public domain (EGM2008), ODbL (watermask)
Source	github.com/reearth/reearth-terrain

Whether you’re building a CesiumJS-based 3D city dashboard, a MapLibre terrain visualization, or a GNSS cross-referencing tool, Re:Earth Terrain eliminates a class of geodetic errors that are easy to overlook but hard to fix downstream. Give it a try — no signup, no API key, just a URL.
